    DSV / DSL Pilot sebetsa Hlahloba valve

    Short Tlhaloso:

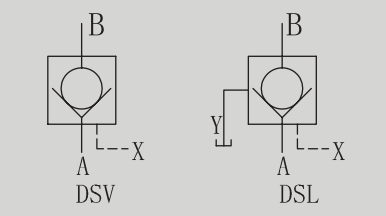

    48

    DSV/DSL pilot operated check valves allow free flow in one direction and block flow in the counter direction to maintain pressure. The oil is allowed to flow in the counter direction when the X port is connected. DSV is designed for internally drained. DSL is designed for externally drained.




    Product Qaqileng

    Tags sehlahisoa

    DSV / DSL motsamaisi sebetsa di-valve cheke lumella bolokolohi ka tsela e 'ngoe le le literata phallo ka stats ka tataiso ho boloka khatello. oli e lumelloa ho phalla ka stats tataiso ha X koung e connected.DSV e reretsoe ho mo lekgotleng e minyelelitse. DSL e etselitsoeng kwa e minyelelitse.

    Size DSV10 DSL10 DSV20 DSL20 DSV30 DSL30
    Port X motsamaisi bophahamo ba modumo (cm, 3) 2.2 8,7 17,5
    Port Y bophahamo ba modumo (cm, 3) - 1,9 - 7,7 - 15,8
    Tataiso ea phallo Free ho tloha sa A B; From B ho A ke a qalang
    Bueloang khatello ea (Mpa) 31,5
    Pilot taolo khatello ea mefuta e fapaneng (MPa) 0.5-31.5
    Max .flow sekhahla (L / mets) 80 150 300
    Weight (KGS) 2,5 2.3 4.3 4,6 8,5 9,2
    Belofo 'mele (Boitsebiso) Bokaholimo kalafo Tšepe se Busang holim Black oxide
    oli bohloeki NAS1638 sehlopha sa 9 le ISO4406 sehlopha sa 20/18/15

    666



    777

    Threaded litekanyo mabapi

    888

    999

    101010
