The Z2DS16 SERIES PILOT CONTROLLED MODULAR CHECK VALVE offers a transformative solution for leakage in heavy machinery hydraulic circuits. It provides a robust, positive sealing mechanism, preventing reverse flow and internal leakage. These Z2DS16 SERIES PILOT CONTROLLED MODULAR CHECK VALVES directly conquer common failure points, significantly reducing fluid loss. Their advanced design ensures a tight, leak-free closure, boosting operational reliability.
Key Takeaways
- Z2DS16 valves stop leaks in heavy machinery. They use a special design to seal tightly. This prevents oil from escaping.
- These valves make machines work better. They stop oil from flowing backward. This protects parts and makes machines last longer.
- Z2DS16 valves are strong and easy to use. They fit well into machines. This means less fixing and more work time.

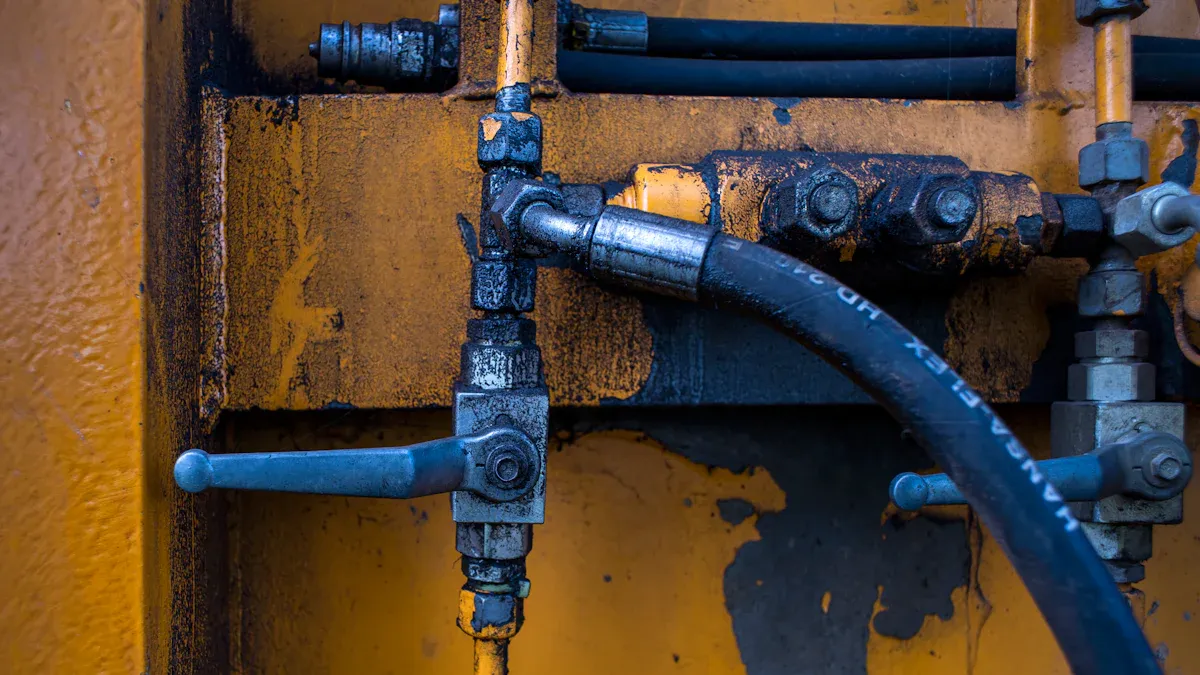

Understanding Leakage in Heavy Machinery Hydraulic Circuits
Hydraulic systems power heavy machinery, but even small leaks can undermine their strength. Understanding the root causes and effects of these leaks empowers operators to seek better solutions.
Common Causes of Hydraulic Leakage
Leakage often begins with seal degradation. Incompatible seal materials can chemically degrade, swell, or harden, compromising their function. Manufacturing defects, such as uneven surfaces or incorrect sizing, also diminish a seal’s effectiveness. Human errors play a role; improper installation tools or selecting the wrong seal type prevent proper function under pressure. Neglected maintenance, like failing to clean systems, allows dirt and debris to accumulate, causing wear. Environmental conditions also contribute. Extreme temperatures make seals brittle or too soft, leading to cracks. Excessive pressure overstresses seals, causing rupture. Fluid contamination, from particulates or water, accelerates seal wear through abrasion and corrosion.
Consequences of Hydraulic Leakage
Hydraulic leaks significantly compromise machine performance. External leaks are visible, showing as oil films or puddles, and demand constant fluid top-offs. These leaks reduce efficiency and can cause downtime. Internal leaks are more subtle; they lead to cylinder drift, sluggish actuator response, and a loss of lifting power. These internal issues gradually degrade performance until a major failure occurs. Beyond operational setbacks, hydraulic fluid leaks pose environmental risks. Petroleum-based fluids contaminate soil and water, harming ecosystems. Even biodegradable fluids can cause harm if not contained. Such leaks can result in substantial environmental fines, legal liabilities, and damage to a company’s reputation.
Why Traditional Check Valves Fall Short
Traditional check valves often struggle to provide a consistently leak-free seal in demanding heavy machinery applications. Their basic designs may allow for minor seepages, especially under fluctuating pressures or when exposed to contaminants. Over time, wear and tear on their simple sealing mechanisms can lead to increased internal leakage. This inherent limitation means they cannot always guarantee the positive, enduring seal required for optimal hydraulic system integrity.
Z2DS16 SERIES PILOT CONTROLLED MODULAR CHECK VALVES: The Leakage Solution
Hanshang Hydraulic, a leader in innovative hydraulic solutions since 1988, developed the Z2DS16 SERIES PILOT CONTROLLED MODULAR CHECK VALVES to directly combat persistent leakage. The company’s dedication to “leading innovation” and “pursuit of excellence” drives the creation of such advanced components. These valves represent a significant leap forward in hydraulic system integrity, offering unparalleled reliability and performance.
Z2DS16 Valve Design and Function
The Z2DS16 series valves feature a pilot-operated sandwich design. This intelligent configuration allows them to precisely close one or two actuator ports within a hydraulic circuit. Fluid pressure from a pilot line controls the main poppet or spool, enabling a positive shut-off. When the pilot pressure activates, it shifts the internal mechanism, allowing fluid flow. When pilot pressure releases, a spring or system pressure forces the mechanism back, creating a tight seal. This design ensures controlled fluid movement and prevents unwanted backflow. Hanshang Hydraulic’s state-of-the-art manufacturing facilities, equipped with CNC machines and high-precision grinders, ensure every valve meets exact specifications. Their advanced R&D team, utilizing PROE and Solidcam, meticulously designs these valves for optimal function and durability.
Key Features for Leakage Prevention
The Z2DS16 SERIES PILOT CONTROLLED MODULAR CHECK VALVES incorporate several critical features that make them exceptional at preventing leakage.
- Precision-Machined Components: Hanshang Hydraulic uses advanced manufacturing processes to produce components with extremely tight tolerances. This precision minimizes internal clearances, drastically reducing potential leak paths.
- Robust Sealing Elements: High-quality, durable sealing materials are chosen for their resistance to wear, temperature fluctuations, and chemical degradation. These seals maintain their integrity even under harsh operating conditions.
- Positive Sealing Mechanism: The pilot-operated design ensures a definitive closure. Unlike simple check valves, the Z2DS16 actively forces a seal, preventing even minor seepages. This positive action guarantees fluid containment.
- Advanced Testing: Every valve undergoes rigorous testing on Hanshang Hydraulic’s specialized test benches. These tests, developed with Zhejiang University, evaluate dynamic, static, and fatigue performance up to 35MPa and 300L/Min. This commitment to quality ensures each valve delivers reliable, leak-free operation.
Design Advantages Over Standard Check Valves
The Z2DS16 valves offer distinct advantages over traditional check valves, making them the superior choice for heavy machinery.
- Enhanced Sealing Integrity: Standard check valves often rely on simple spring-loaded poppets, which can allow slight leakage under varying pressures or with minor contamination. The Z2DS16′s pilot-operated mechanism provides a much more robust and positive seal, virtually eliminating internal leakage.
- Controlled Operation: Operators gain precise control over fluid flow. The pilot signal allows for controlled opening and closing, which prevents sudden pressure spikes and hydraulic shock. This controlled action extends the life of other system components.
- Durability and Longevity: Hanshang Hydraulic’s commitment to “product quality is the core of enterprise development” translates into valves built to last. The robust construction and superior materials of the Z2DS16 withstand the demanding environments of heavy machinery. This reduces maintenance needs and extends operational uptime.
- Modular Flexibility: As modular valves, they integrate seamlessly into existing hydraulic systems. This simplifies installation and maintenance, offering a versatile solution for various applications. Hanshang Hydraulic’s dedication to innovation ensures these valves meet the evolving needs of the industry, helping to “build a well-known brand in the hydraulic field.”
How Z2DS16 Valves Directly Combat Leakage Problems
Z2DS16 valves stand as a testament to engineering excellence, directly confronting and resolving the persistent issue of hydraulic leakage. They empower heavy machinery to operate with unmatched reliability and efficiency.
Positive Sealing Mechanism
The Z2DS16 valve employs a superior positive sealing mechanism. This design ensures a definitive, leak-free closure every time. Unlike traditional valves that might rely on simple spring pressure, the Z2DS16 actively forces its sealing element into place. This creates an impenetrable barrier against fluid escape. Operators gain confidence knowing their hydraulic circuits maintain full pressure and integrity. This robust seal prevents even the slightest seepages, which often escalate into major problems. It secures fluid within the system, maximizing power transmission and minimizing waste.
Prevention of Reverse Flow
Unwanted reverse flow can devastate hydraulic systems, causing component damage and significant performance loss. Z2DS16 valves expertly prevent this issue. Their pilot-operated design immediately senses any potential for backflow. The valve then swiftly and decisively closes, blocking fluid movement in the wrong direction. This rapid response protects critical components like cylinders and motors from damaging pressure surges. It also maintains the precise positioning of actuators, ensuring consistent and accurate machine operation. This proactive prevention safeguards the entire hydraulic circuit, extending its lifespan and enhancing overall safety.
Durability and Robustness
Heavy machinery operates in the most demanding environments. Z2DS16 valves are built to thrive under these harsh conditions. Hanshang Hydraulic crafts these valves from high-grade materials, ensuring exceptional resistance to wear, corrosion, and extreme temperatures. Their robust construction withstands constant vibration and high-pressure cycles without faltering. This inherent durability means fewer breakdowns and less downtime for maintenance. Operators can trust these valves to perform reliably day after day, contributing to uninterrupted productivity and lower operational costs. The long-lasting nature of Z2DS16 SERIES PILOT CONTROLLED MODULAR CHECK VALVES makes them a wise investment for any heavy machinery fleet.
Modular Design Benefits
The modular design of Z2DS16 valves offers immense advantages in combating leakage. These valves integrate seamlessly into existing hydraulic systems. This eliminates the need for complex piping and numerous connections, which are common sources of leaks. Fewer connections mean fewer potential leak paths. Installation becomes simpler and faster, reducing the chance of errors. Maintenance also becomes more straightforward, allowing for quick component replacement if needed. This modularity enhances system flexibility and simplifies troubleshooting, ultimately contributing to a more reliable and leak-free hydraulic circuit.
Reduced Pressure Drop and Heat Generation
Efficient hydraulic systems minimize energy loss. Z2DS16 valves feature optimized internal flow paths that significantly reduce pressure drop across the valve. This efficiency means less energy converts into unwanted heat. Excessive heat degrades hydraulic fluid and accelerates seal wear, leading to leaks. By keeping the system cooler, Z2DS16 valves preserve fluid quality and extend the life of seals and other components. This reduction in heat generation directly contributes to a more stable, leak-resistant hydraulic system, ensuring peak performance and longevity for heavy machinery.
The Z2DS16 SERIES PILOT CONTROLLED MODULAR CHECK VALVES offer an indispensable solution for persistent leakage. Their advanced design, positive sealing, and robust construction directly address leakage root causes. This brings significant improvements in efficiency, reliability, and operational costs. These valves ensure enhanced safety and extended component life for heavy machinery operators.
FAQ
What makes Z2DS16 valves superior for preventing leaks?
Z2DS16 valves use a pilot-operated design. This creates a positive, robust seal. It actively prevents fluid escape. This ensures unmatched reliability and system integrity.
How do Z2DS16 valves contribute to cost savings?
They reduce fluid loss and downtime. This lowers maintenance costs. Their durability extends equipment life. This leads to significant long-term savings for operators.
Are Z2DS16 valves easy to integrate into existing hydraulic systems?
Yes, their modular design allows seamless integration. This simplifies installation. It also reduces potential leak points. This enhances overall system flexibility.
