The FC51 FLOW CONTROL VALVE from HANSHANG provides precise flow control. This full-range, pressure-compensated valve maintains a constant flow rate regardless of system pressure changes. It automatically adjusts its internal orifice size. This action compensates for upstream and downstream pressure variations, ensuring stable hydraulic actuator speeds.
Key Takeaways
- The FC51 valve keeps fluid flow steady. It does this even when system pressure changes. This helps hydraulic machines work smoothly.
- The FC51 valve saves energy. It makes hydraulic systems run better. This can lower costs and make parts last longer.
- The FC51 series has different models. These models fit various needs. They make hydraulic systems reliable and strong.
Understanding the FC51 FLOW CONTROL VALVE’s Operation
Principle of Pressure Compensation in FLOW CONTROL VALVEs
The FC51 FLOW CONTROL VALVE utilizes a sophisticated pressure compensation principle. This mechanism ensures a consistent flow rate through the valve. It actively monitors both upstream and downstream pressures within the hydraulic system. When these pressures fluctuate, the valve automatically adjusts its internal orifice. This adjustment counteracts the pressure changes. As a result, the volume of hydraulic fluid passing through the valve remains constant. This constant flow directly translates to stable and predictable speeds for hydraulic actuators, regardless of varying loads or system demands.
Variable Flow Adjustment Mechanism
Users can precisely adjust the FC51′s flow rate. The valve features a manual adjustment mechanism, often a handle or knob. Turning this control changes the initial size of the valve’s internal orifice. This action sets the desired maximum flow rate. Once set, the pressure compensation feature takes over. It maintains this chosen flow rate, even if system pressures change. This design allows operators to fine-tune the speed of hydraulic cylinders or motors with ease.
Full-Range Control Capabilities
The FC51 series offers full-range control over hydraulic fluid flow. This means the valve can accurately regulate flow from its minimum setting up to its maximum capacity of 114 liters per minute. The pressure compensation mechanism operates effectively across this entire spectrum. It ensures precise flow regulation at any chosen setting. This capability makes the FC51 highly versatile. It suits a wide array of hydraulic applications requiring stable and adjustable control over actuator speeds.
Key Features and Benefits of the FC51 Series FLOW CONTROL VALVE
Precise Flow Regulation
The FC51 series offers highly precise flow regulation. Its advanced pressure compensation mechanism ensures consistent fluid delivery. This means hydraulic actuators maintain steady, predictable speeds. Operators can easily set a desired flow rate. The valve then actively works to keep that rate constant. This precision is crucial for applications needing exact movement control and repeatable processes. It eliminates speed variations caused by changing loads.
Energy Efficiency Advantages
The FC51 FLOW CONTROL VALVE contributes significantly to energy efficiency. By maintaining a stable flow, it prevents unnecessary pressure drops and turbulence. This reduces heat generation within the hydraulic system. Less heat means less energy waste. The valve helps hydraulic systems operate more efficiently. This leads to lower operating costs and can extend the lifespan of hydraulic components. It optimizes power usage.
Versatility and Reliability in Hydraulic Systems
The FC51 series demonstrates great versatility and reliability. It performs consistently across many diverse hydraulic applications. Its robust construction includes a durable cast body with phosphating. This surface treatment provides excellent rust and wear resistance. The valve operates effectively in various industrial settings. It ensures consistent and dependable performance for critical machinery, even under demanding conditions. This makes it a trusted component in complex hydraulic circuits.

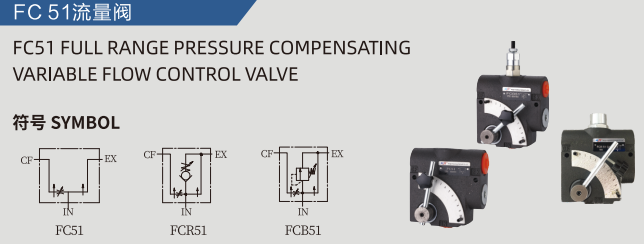

Exploring FC51 Series FLOW CONTROL VALVE Models: FC51, FCR51, and FCB51
The HANSHANG FC51 series offers specialized models. Each model addresses distinct hydraulic system requirements. These variations build upon the core pressure-compensated design. They provide enhanced functionality for diverse applications.
FC51: The Standard Variable FLOW CONTROL VALVE
The FC51 represents the foundational model in this series. It provides full-range, pressure-compensated variable flow control. This valve maintains a constant flow rate. It does this regardless of pressure changes in the hydraulic system. The FC51 automatically adjusts its internal orifice size. This action compensates for upstream and downstream pressure variations. It ensures precise and stable control over hydraulic actuator speeds. Operators use a manual adjustment to set the desired flow. This model is ideal for general applications needing consistent speed control.
FCR51: FLOW CONTROL VALVE with Reverse Flow Check
The FCR51 model enhances the standard FC51. It integrates a reverse flow check valve. This check valve allows controlled flow in one direction. It permits free, unrestricted flow in the opposite direction. For example, a hydraulic cylinder can extend slowly and precisely. It can then retract quickly without flow restriction. This feature eliminates the need for a separate check valve in the circuit. It simplifies system design. The FCR51 is perfect for applications requiring different speeds for opposing movements.
FCB51: FLOW CONTROL VALVE with Bypass Relief
The FCB51 model adds a bypass relief function. This valve controls flow to an actuator. It also protects the system from overpressure. If pressure in the controlled line exceeds a preset limit, the bypass relief opens. It diverts excess fluid back to the tank. This prevents damage to components. It also maintains system integrity. The FCB51 is particularly useful in circuits where load spikes can occur. It ensures both precise flow control and essential pressure protection.
Comparative Applications of FC51 Series FLOW CONTROL VALVEs
Each FC51 series model serves specific application needs. The FC51 suits general speed control tasks. Examples include machine tools, packaging equipment, and material handling systems. It ensures consistent operation for these machines.
The FCR51 excels in applications demanding differential speeds. Consider hydraulic presses or clamping devices. These often require a slow, controlled work stroke. They also need a fast, uncontrolled return stroke. The FCR51 handles both requirements efficiently.
The FCB51 finds its place in systems needing both flow control and overpressure protection. This includes hydraulic motor drives. It also applies to applications with potential for sudden load increases. The bypass relief feature safeguards the system. It ensures smooth operation even under fluctuating conditions. Choosing the correct FC51 series model optimizes hydraulic system performance and reliability.
The FC51 series is essential for stable, efficient hydraulic system operation. Its pressure compensation mechanism ensures consistent performance. The FC51, FCR51, and FCB51 models offer tailored solutions for diverse FLOW CONTROL VALVE needs. They are indispensable components for reliable hydraulic machinery.
FAQ
❓ What is pressure compensation in the FC51 valve?
Pressure compensation maintains a constant flow rate. It automatically adjusts the valve’s internal opening. This action occurs despite changes in hydraulic system pressure.
⚙️ How does the FC51 allow variable flow adjustment?
An operator uses a manual control. This sets the desired flow rate. The valve’s internal mechanism then maintains this rate consistently.
