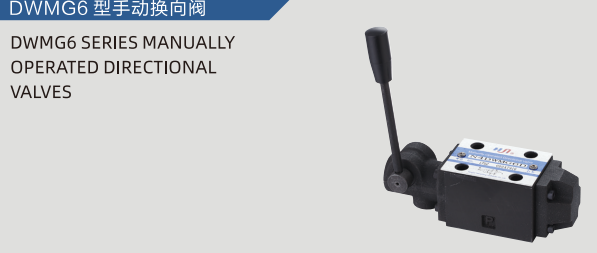

The DWMG6 manual directional valve offers a straightforward yet powerful solution for cost-effective hydraulic control. This hanshang Directional Valve features a simple design. It also requires low maintenance. These qualities ensure reliable performance. Many DIRECTIONAL VALVES complicate hydraulic systems, but the DWMG6 streamlines operations.
Key Takeaways
- The DWMG6 valve has a simple design. This makes it very reliable.
- The DWMG6 valve needs little maintenance. This saves money and keeps systems working.
- The DWMG6 valve works well in many machines. It is good for mobile and industrial uses.
DWMG6 Directional Valve: Simple Design for Reliable Hydraulic Control
Understanding Manual Directional Valve Functionality
A manual directional valve controls hydraulic fluid flow. Operators use a hand lever to shift an internal spool. This action directs hydraulic oil to different system parts. The DWMG6 manual directional valve operates on this direct principle. It allows users to open, stop, or change hydraulic oil flow paths. This manual operation provides precise control. The DWMG6 offers configuration options. Users can choose a detent mechanism. This holds the spool in a selected position. Alternatively, a spring return automatically brings the spool back to its initial position when released. These choices adapt to various operational needs.
Key Design Features of the DWMG6 Series
The DWMG6 series incorporates specific features for effective hydraulic control. It has a nominal size of 6. This valve handles a flow rate of 60 L/min. It operates efficiently in medium-flow hydraulic systems. The operating pressure for A, B, and P ports reaches 31.5 MPa. The T port handles 16 MPa. These specifications ensure robust performance under significant pressure. The valve weighs 1.5 kg. This indicates a compact and manageable unit. Its body consists of a cast material. A phosphated surface treatment protects it. This treatment enhances corrosion resistance and durability. The valve requires oil cleanliness levels of NAS1638 Class 9 or ISO4406 20/18/15. This ensures optimal function and longevity.
Minimal Moving Parts for Enhanced Reliability
The DWMG6′s design prioritizes simplicity. It features a minimal number of moving parts. This design choice directly contributes to its high reliability. Fewer components mean fewer potential points of failure. This reduces internal friction and wear. The valve maintains consistent performance over extended periods. This inherent simplicity makes the DWMG6 a dependable component in any hydraulic circuit. It minimizes the chances of unexpected breakdowns.
Robust Construction for Durability
The DWMG6 valve boasts a robust construction. Its cast body provides exceptional strength. The phosphated surface treatment offers superior protection against environmental factors. This construction allows the valve to withstand demanding operational conditions. It resists corrosion and mechanical stress effectively. The high-pressure ratings further underscore its durability. This sturdy build ensures a long service life. It reduces the need for frequent replacements. This contributes to overall cost-effectiveness.
Low Maintenance: Maximizing Uptime and Cost Savings in Hydraulic Control
Reduced Wear and Tear for Extended Life
The DWMG6′s simple design directly contributes to its extended operational life. It features fewer internal components. This minimizes friction points within the valve. Less friction means less material degradation over time. The robust construction also resists wear from continuous operation. This design philosophy reduces the need for frequent part replacements. Operators experience longer intervals between maintenance cycles. The valve maintains its performance integrity for many years.
Ease of Inspection and Repair
Inspecting and repairing the DWMG6 valve is a straightforward process. Its uncomplicated structure allows technicians to quickly identify issues. They do not need specialized tools or complex diagnostic procedures. The valve’s design provides easy access to internal components. This simplifies routine checks. If a repair becomes necessary, technicians can complete it efficiently. This reduces downtime for the hydraulic system.
Fewer Replacement Parts and Lower Operational Costs
The DWMG6′s durability and ease of repair translate into significant cost savings. Its extended lifespan means fewer replacement parts. Businesses spend less money on spare components. The simple design also reduces labor costs for maintenance. Technicians complete tasks faster. This efficiency lowers overall operational expenses. The valve offers an economical solution for hydraulic control.
Improved System Reliability and Productivity
Low maintenance requirements directly enhance system reliability. The DWMG6 consistently performs its function. This minimizes unexpected interruptions in operations. Reliable components ensure continuous workflow. Operators can depend on the hydraulic system. This consistency leads to increased productivity. Businesses achieve their operational goals more effectively. The DWMG6 manual Directional Valve contributes to a stable and efficient work environment.
Practical Applications of the DWMG6 Directional Valve
Mobile Machinery and Equipment
The DWMG6 manual directional valve finds extensive use in mobile machinery and equipment. Operators often find it in small agricultural vehicles, compact construction equipment, and utility vehicles. Its robust design withstands harsh outdoor conditions. For example, small tractors use it for controlling implements. Forklifts also employ it for lifting and tilting functions. The DWMG6 provides reliable hydraulic control where electrical systems might be complex or unnecessary. Its manual operation ensures direct user interaction.
Industrial Hydraulic Systems
Industrial settings also benefit from the DWMG6. Manufacturers integrate it into various hydraulic systems within factories and workshops. It controls simple presses, clamping devices, and material handling equipment. The valve’s straightforward functionality makes it ideal for applications requiring precise, operator-driven movements. Its durability ensures long-term performance in demanding industrial environments. This valve helps maintain efficient production processes.
Scenarios Favoring Manual Hydraulic Control
Certain scenarios specifically favor manual hydraulic control. The DWMG6 excels in these situations. For instance, it provides essential control in locations without reliable power sources. Emergency systems often rely on manual valves for critical operations. Simple hydraulic circuits, where operators need direct, tactile feedback, also benefit. The DWMG6 manual Directional Valve offers a cost-effective and dependable solution for these specific needs. It ensures operation even when automated systems are impractical or unavailable.
The DWMG6 manual directional valve demonstrates how simple design and low maintenance directly lead to significant cost savings. It also ensures reliable performance in hydraulic control systems. Its robust construction and straightforward operation make it an intelligent choice for various applications. These applications require efficient and economical hydraulic management.
FAQ
What is the DWMG6 manual directional valve’s primary function?
The DWMG6 valve controls hydraulic fluid flow. It directs oil to different parts of a system. Operators use a hand lever for this action.
What types of systems commonly use the DWMG6 valve?
Mobile machinery and industrial hydraulic systems frequently use the DWMG6. It suits small to medium flow applications. It also works well in scenarios needing manual control.
How does the DWMG6 valve contribute to cost savings?
Its simple design and robust construction reduce wear. This leads to fewer replacement parts. It also lowers maintenance needs. This saves operational costs.
