Hanshang Hydraulics’ MOP.06.6 FLOW DIVERTERS precisely split a single input flow. They create multiple, independently controlled output flows. This ensures each actuator receives the exact fluid volume. Synchronized and efficient operation results, even under varying load conditions. The MOP.06.6 FLOW DIVERTERS are key to achieving superior performance in complex multi-actuator hydraulic systems.
Key Takeaways
- Multi-actuator hydraulic systems often have uneven fluid flow. This causes parts to move at different speeds. This reduces system accuracy and wastes energy.
- Hanshang Hydraulics’ MOP.06.6 FLOW DIVERTERS solve this problem. They split fluid flow precisely. Each part gets the right amount of fluid. This makes all parts move together smoothly.
- These diverters work well in changing conditions. They adjust for changes in pressure and temperature. This ensures consistent and reliable performance for hydraulic systems.
The Challenge: Inefficient Flow in Multi-Actuator Systems
Understanding Uneven Flow and Its Consequences
Multi-actuator hydraulic systems often face a significant hurdle: uneven flow distribution. This occurs when a single hydraulic pump supplies multiple cylinders or motors. Without precise control, the fluid naturally takes the path of least resistance. This means some actuators receive more fluid than intended, while others receive less. This imbalance directly leads to a lack of synchronization. Actuators move at different speeds or with varying forces. Such discrepancies compromise the system’s overall precision and effectiveness. Operators observe inconsistent movements and reduced operational accuracy.
Common Issues Without Proper Flow Management
Failing to manage hydraulic flow properly creates numerous operational problems. Systems without effective flow management experience significant performance degradation. They suffer from:
- Excessive throttling losses
- Low energy efficiency
- Large deviations from set velocities
- Increased energy consumption due to load differences
- Hydraulic energy wastage as heat through throttling
- Risk of cavitation or pressure surge if flow rates are not accurately matched
These issues collectively reduce system reliability and increase operational costs. They also shorten the lifespan of components. Achieving peak performance and efficiency becomes impossible without a solution that ensures balanced flow. This highlights the critical need for advanced flow distribution technology.
Hanshang Hydraulics’ MOP.06.6 FLOW DIVERTERS: Precision in Action
What Makes the MOP.06.6 FLOW DIVERTERS Unique

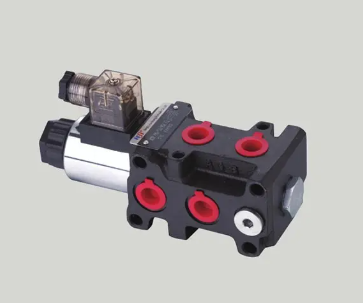

Hanshang Hydraulics’ MOP.06.6 FLOW DIVERTERS stand out as a pinnacle of hydraulic engineering. These stackable circuit selector valves allow a single drive to manage six users. Five elements connect in series, creating a streamlined system. High-performance solenoids move these valves. They eliminate the need for external drainage, which simplifies system design and reduces complexity. The MOP.06.6 FLOW DIVERTERS manage high hydraulic powers. They achieve this with minimal pressure drop, ensuring efficient energy transfer throughout the system. Hanshang Hydraulics’ commitment to “leading innovation” drives this uniqueness. They constantly push boundaries in hydraulic design, delivering solutions that empower superior performance.
Key Design Principles for Precise Flow Splitting
Hanshang Hydraulics builds precision into every component. Their design principles for the MOP.06.6 FLOW DIVERTERS focus on absolute accuracy. An excellent research and development team leads this effort. They utilize advanced 3D design software like PROE. Solidcam further ensures manufacturing efficiency, reliability, and high accuracy. The company’s state-of-the-art manufacturing facility boasts over a hundred machines. These include CNC full-function lathes, machining centers, and high-precision grinders. Hanshang Hydraulics also developed a specialized test bench with Zhejiang University. This advanced system tests valves up to 35MPa and 300L/Min. It precisely measures dynamic, static, and fatigue life. This rigorous approach ensures each MOP.06.6 FLOW DIVERTER splits flow with exceptional accuracy. “Pursuing excellence” is their unwavering guiding principle.
Direct Impact on Balanced Flow with MOP.06.6 FLOW DIVERTERS
These innovative diverters directly transform multi-actuator systems. They ensure perfectly balanced flow distribution. Each actuator receives its exact fluid requirement. This eliminates uneven movement and guarantees synchronized operation. Systems achieve higher efficiency. Energy consumption reduces significantly, and components last longer. Hanshang Hydraulics’ dedication to quality ensures stable and reliable products. They hold ISO9001-2015 quality management system certification. Their export products carry full CE certification for Europe. These diverters help customers achieve superior performance. They contribute to Hanshang’s ultimate goal: “building a well-known brand in the hydraulic field.” They empower hydraulic systems to reach their full potential.
How MOP.06.6 FLOW DIVERTERS Achieve Optimal Flow Distribution
Principle of Operation: Internal Mechanism of MOP.06.6 FLOW DIVERTERS
Hanshang Hydraulics’ MOP.06.6 FLOW DIVERTERS operate with remarkable precision. They use a sophisticated internal mechanism. This mechanism ensures accurate flow splitting. A single input flow enters the diverter. Inside, a series of precisely engineered channels and spools direct the fluid. These components work in harmony. They divide the flow into multiple, independent output streams. Each stream goes to a specific actuator. The design minimizes internal leakage. It also reduces pressure losses. This ensures maximum efficiency. The high-performance solenoids play a crucial role. They actuate the internal components. This allows for dynamic adjustments. The system responds quickly to changing demands. This intelligent design ensures each actuator receives its exact fluid volume. It guarantees synchronized and efficient operation.
Maintaining Accuracy Under Varying Conditions with MOP.06.6 FLOW DIVERTERS
The MOP.06.6 FLOW DIVERTERS excel at maintaining accuracy. They perform well even under varying conditions. They compensate for changes in load, pressure, and fluid viscosity. This adaptability is a cornerstone of their design.
| Compensation Type | Mechanism |
|---|---|
| Pressure Compensation | This mechanism maintains a constant flow rate. It works regardless of changes in load pressure. A compensator spool adjusts the orifice size. This counteracts pressure fluctuations. When load pressure increases, the spool opens the orifice further. This allows more fluid to pass. It maintains the desired flow. When load pressure decreases, the spool restricts the orifice. This ensures a stable flow rate. This is crucial for precise speed control. |
| Temperature Compensation | This mechanism addresses viscosity changes. Hydraulic fluid viscosity changes with temperature. As temperature rises, viscosity decreases. This increases flow rate through a fixed orifice. Temperature compensation systems adjust the orifice size. They respond to temperature changes. A bimetallic strip or temperature-sensitive material actuates a small adjustment. When fluid temperature increases, the compensator reduces the orifice size. This maintains a consistent flow rate. This is vital in systems with wide temperature swings. |
These compensation mechanisms ensure consistent performance. They guarantee reliability in diverse operating environments. Hanshang Hydraulics engineers these diverters for unwavering precision.
Real-World Synchronization Examples with MOP.06.6 FLOW DIVERTERS
The MOP.06.6 FLOW DIVERTERS bring exceptional synchronization to real-world applications. Consider a large industrial press. Multiple hydraulic cylinders must extend and retract simultaneously. Without precise flow distribution, the press could tilt. This would damage the workpiece or the machine itself. The MOP.06.6 FLOW DIVERTERS ensure each cylinder receives the exact fluid volume. This guarantees perfectly synchronized movement. Another example is in mobile machinery. Imagine a crane with multiple boom sections. Each section requires precise, coordinated movement. The diverters enable smooth, simultaneous extension and retraction. This enhances safety and operational efficiency. In complex manufacturing lines, robotic arms often perform intricate tasks. These tasks demand highly synchronized movements. The MOP.06.6 FLOW DIVERTERS provide the necessary control. They ensure each joint moves in perfect harmony. This leads to flawless execution and increased productivity. These examples highlight the transformative power of precise flow distribution. They demonstrate how Hanshang Hydraulics empowers systems to achieve their full potential.
The Hanshang Hydraulics MOP.06.6 FLOW DIVERTERS stand as a critical component. They achieve superior flow distribution in multi-actuator hydraulic systems. These diverters enhance synchronization and boost efficiency. Each actuator receives its precise fluid requirement, elevating overall system performance. Hanshang Hydraulics’ unwavering commitment to innovation and quality ensures the MOP.06.6 FLOW DIVERTERS set a new standard in hydraulic control.
FAQ
What makes MOP.06.6 FLOW DIVERTERS essential for hydraulic systems?
These diverters precisely split flow. They ensure each actuator receives the exact fluid volume. This guarantees synchronized, efficient operation, even under varying loads.
How do MOP.06.6 FLOW DIVERTERS maintain accuracy in challenging conditions?
They feature advanced pressure and temperature compensation. This allows them to adapt to changes in load, pressure, and fluid viscosity. They ensure consistent performance.
Can MOP.06.6 FLOW DIVERTERS simplify complex hydraulic setups?
Yes, their stackable design and high-performance solenoids eliminate external drainage. This streamlines system design. It also reduces overall complexity.
