The HVC6 Series directional valves significantly boost precision in industrial automation production lines through their advanced design and line mounting capabilities. These valves are critical for achieving high accuracy and reliability in modern manufacturing. Advanced directional valves enable precise motion in robotic arms and conveyor systems. This leads to reduced cycle times and improved overall production speed. HVC6 SERIES DIRECTIONAL VALVES LINE MOUNTING contributes to this enhanced control.
Key Takeaways
- HVC6 Series directional valves make factory machines work with great accuracy. They help make things correctly every time.
- Line mounting helps HVC6 valves work even better. It makes them faster and easier to fix.
- Using HVC6 valves means less fixing and more work done. This helps factories make more products and save money.
Understanding HVC6 Series Directional Valves: Core Features for Precision

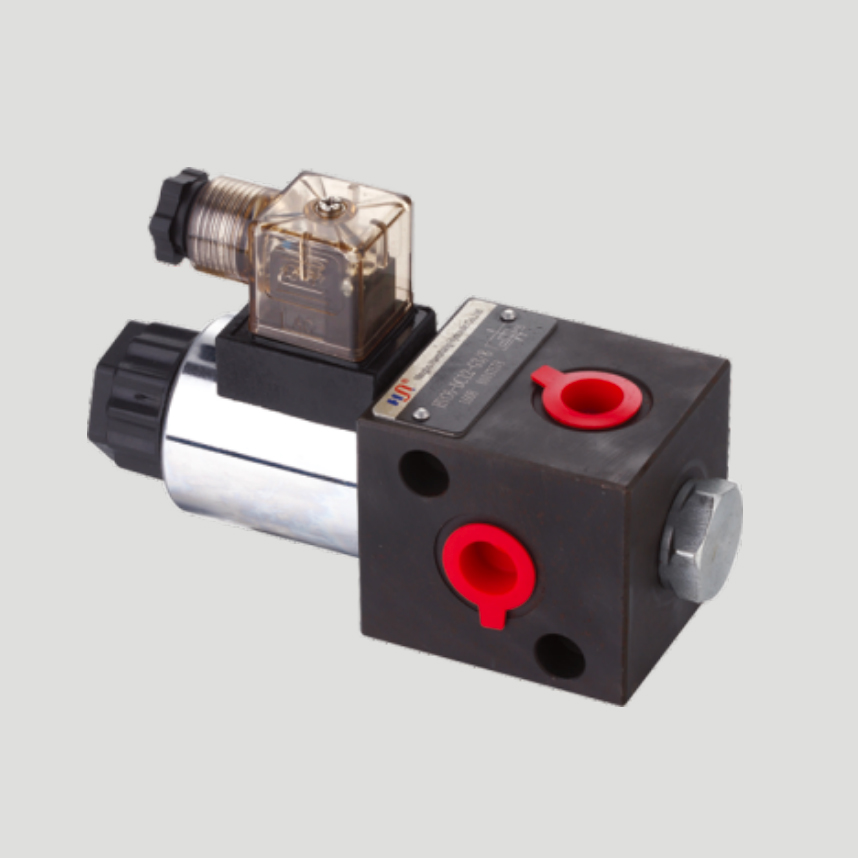

What Defines HVC6 Series Directional Valves?
HVC6 Series directional valves represent a cornerstone in modern industrial automation. They embody Hanshang Hydraulic’s commitment to innovation and excellence. Leading innovation is the soul of Hanshang Hydraulic’s development. The pursuit of excellence is the cornerstone of Hanshang Hydraulic’s competition. These valves offer precise control for various applications. They ensure high accuracy and reliability in manufacturing processes. Hanshang Hydraulic aims to cast a well-known brand in the hydraulic field. The HVC6 series contributes significantly to this goal.
Key Technological Advancements for Enhanced Control
The HVC6 Series incorporates several technological advancements. These features enhance control and system performance.
- Solenoid-Operated Valves: These valves allow precise electronic control. They offer rapid response times. This is crucial for integration into modern automation systems. Electrical signals easily activate them. They integrate with PLCs for reliable and precise control in industrial processes.
- Innovative Materials and Surface Treatments: The HVC6 series uses phosphating on its cast body. This treatment significantly improves corrosion resistance. It extends the valve’s operational life. This contributes to overall durability and performance.
- Adherence to High Oil Cleanliness Standards: The valves support high oil cleanliness standards (NAS1638 Grade 9 and ISO4406 20/18/15). This ensures optimal performance and longevity. It is especially important when paired with sensitive automation components. This maintains precise control over time.
- Engineering Excellence (Two-position, Three-way Solenoid Valve): The HVC6 Series exemplifies engineering excellence. It offers reliable and precise control for various applications.
HVC6 Series Specifications: Flow, Pressure, and Models
The HVC6 Series directional valves offer robust specifications for demanding industrial environments. The maximum flow for HVC6 valves is 50 L/min. They operate at a maximum working pressure of 25 Mpa.
The HVC6 Series directional valves demonstrate significant advancements over their predecessors. They offer enhanced precision and quicker operational speeds. These improvements contribute to more efficient and reliable system performance.
| Feature | HVC6 Series | Previous Generation |
|---|---|---|
| Response Time | 10 ms | 20 ms |
| Accuracy | 0.5% | 1% |
This table highlights the HVC6 series’ superior performance. It shows faster response times and higher accuracy.
The Power of HVC6 Series Directional Valves Line Mounting: Optimizing Performance
What is Line Mounting and Its Crucial Role for HVC6?
Line mounting is a method of installing hydraulic valves directly into the hydraulic lines. This design connects the valve directly to the system’s pipes or hoses. It eliminates the need for separate manifold blocks. This approach is crucial for HVC6 Series directional valves. It allows them to perform at their best. This method simplifies the hydraulic circuit. It also enhances the overall efficiency of the system.
Line mounting offers several benefits for HVC6 Series directional valves:
- Improved Flow Dynamics and Pressure Stability: Line mounting creates shorter, more direct flow paths. This minimizes turbulence and pressure drops. It leads to faster response times and stable pressure control. This is crucial for precise machinery operation in heavy industry.
- Streamlined Installation and Reduced Downtime: The design simplifies installation. It allows direct connection into hydraulic lines. This eliminates complex manifold blocks. It reduces assembly time. It also means fewer potential connection points. This significantly cuts down machinery downtime.
- Simplified Maintenance and Increased Accessibility: Technicians can easily access valves directly within the hydraulic lines. This avoids hidden components. It speeds up inspection and replacement tasks. This reduces maintenance effort. It keeps machines running smoothly.
- Enhanced Robustness and Reliability: Reducing the number of connections minimizes potential leak points and failures. It also helps the valves withstand vibrations. It reduces exposure to contaminants. This ensures reliable performance in demanding industrial environments.
- Cost Savings: Optimized performance and longevity lead to significant cost savings. This includes reduced breakdowns and simplified maintenance. It prevents costly downtime. It also lowers overall upkeep expenses.
Direct Impact on System Responsiveness and Accuracy
Line mounting significantly enhances accuracy in hydraulic systems. It uses HVC6 Series directional valves. This design improves fluid flow dynamics and pressure stability. It creates shorter, more direct flow paths. This minimizes turbulence and reduces pressure drops within the system. The result is faster response times from the valve. It also provides more stable pressure control. Both are critical for precise machinery operation. They ensure consistent, reliable performance in heavy industry applications. The direct connection of HVC6 SERIES DIRECTIONAL VALVES LINE MOUNTING reduces signal delays. This allows for quicker adjustments to fluid flow. This directly translates to more precise control over actuators. It improves the overall responsiveness of the hydraulic system.
Streamlined Integration for Complex Production Lines
Integrating HVC6 Series directional valves with line mounting simplifies complex production lines. This method reduces the number of components. It also minimizes the space required for installation. This makes it easier to design and implement hydraulic systems. Engineers can arrange valves more flexibly. This optimizes the layout of machinery. The streamlined nature of HVC6 SERIES DIRECTIONAL VALVES LINE MOUNTING also reduces potential points of failure. This improves system reliability. It makes troubleshooting easier. This approach supports the creation of highly efficient and adaptable automation systems.
Boosting Industrial Automation with HVC6 Series Directional Valves Line Mounting: Real-World Benefits
Achieving Tighter Tolerances and Repeatability
HVC6 Series directional valves, especially with line mounting, significantly elevate precision in industrial automation. Manufacturers achieve tighter tolerances and greater repeatability in production processes. Hanshang Hydraulic ensures component quality through state-of-the-art CNC machines, processing centers, and high-precision grinders. These tools guarantee components meet stringent quality standards. An innovative R&D team employs world-leading 3D design software like PROE. This guarantees high efficiency, reliability, and accuracy in product design. This meticulous design and manufacturing process directly translates into superior valve performance. The HVC6 SERIES DIRECTIONAL VALVES LINE MOUNTING configuration further enhances this precision. It minimizes fluid path variations. This allows for consistent and accurate control over hydraulic actuators. Rigorous testing on advanced test benches verifies the valves’ capabilities. These tests simulate demanding real-world conditions. They include pressures up to 35MPa and flows up to 300L/Min. This comprehensive testing verifies dynamic and static performance. It also confirms long fatigue life. This ensures the valves consistently deliver precise movements. They maintain accuracy over extended operational periods.
Increased Throughput and Operational Efficiency
The HVC6 Series directional valves, combined with line mounting, dramatically increase throughput and operational efficiency. Their rapid response times and precise control minimize cycle times in automated processes. Shorter, more direct flow paths inherent in line mounting reduce energy loss and pressure drops. This allows hydraulic systems to operate more efficiently. Machines complete tasks faster and with greater consistency. This leads to higher production volumes. The streamlined integration of HVC6 SERIES DIRECTIONAL VALVES LINE MOUNTING into complex production lines also contributes to efficiency. It simplifies system design and reduces installation time. This allows for quicker deployment of new or upgraded automation systems. Businesses experience improved productivity and a better return on investment.
Reduced Maintenance and Enhanced System Reliability
Industrial operations benefit from significantly reduced maintenance and enhanced system reliability with HVC6 Series directional valves. The robust design and high-quality materials, including phosphating for corrosion resistance, extend the valves’ operational life. Adherence to high oil cleanliness standards (NAS1638 Grade 9 and ISO4406 20/18/15) further protects internal components. This minimizes wear and tear. Line mounting reduces the number of potential leak points compared to traditional manifold systems. This inherently improves system integrity. Easier access to line-mounted valves simplifies inspection and replacement tasks. This reduces maintenance effort and associated downtime. The inherent design of HVC6 SERIES DIRECTIONAL VALVES LINE MOUNTING contributes to this enhanced reliability. The comprehensive testing procedures, including fatigue life verification, ensure the HVC6 Series valves perform reliably under continuous operation. This translates into fewer unexpected breakdowns and a more stable production environment.
Implementing HVC6 Series Directional Valves Line Mounting for Optimal Precision
Selecting the Right HVC6 Valve Configuration
Selecting the right HVC6 valve configuration is paramount for optimal precision. Consider the specific application requirements. Valve construction materials and seals must be compatible with the hydraulic fluid. They also need to suit the operating environment. Incompatible materials can cause corrosion or seal degradation. This leads to valve failure. Extreme temperatures, corrosive atmospheres, or abrasive particles require specific material choices. Common seal materials include Nitrile (Buna-N), Viton, and EPDM. Each material suits different conditions. Verifying material and seal compatibility is crucial for long-term reliability. It prevents costly downtime. The HVC6 SERIES DIRECTIONAL VALVES LINE MOUNTING configuration offers flexibility.
- Fluid Compatibility: The valve material must be compatible with the hydraulic fluid. This prevents corrosion and contamination.
- Environmental Conditions: Temperature extremes and exposure to contaminants influence valve performance. They affect reliability and durability.
- Material Compatibility: Ensure the valve material suits the fluid type.
- Performance Capacity: Assess the valve’s expected performance. Consider temperature and pressure.
- Sizing: Choose the correct size. This avoids operational issues.
- Actuation Methods: Determine how the valve will operate.
- Maintenance Considerations: Consider the ease of maintenance. Think about part accessibility.
Best Practices for Line Mounting Installation
Proper installation of HVC6 valves is essential. Ensure clean hydraulic lines before installation. Flush the system to remove debris. Use appropriate tools for tightening connections. Avoid overtightening. This can damage threads or seals. Position valves for easy access during maintenance. This simplifies future service. Secure all connections to prevent leaks. Check for proper alignment. This ensures smooth fluid flow.
System Integration and Calibration for Peak Performance
Integrating HVC6 valves into a system requires careful planning. Connect the valves to the control system. Ensure correct wiring and signal transmission. Calibrate the system after installation. This involves adjusting pressure and flow settings. Verify the valve’s response to control signals. Test the system under various load conditions. This confirms precise and reliable operation. Regular monitoring helps maintain peak performance.
HVC6 Series directional valves, particularly through effective line mounting, are indispensable tools. They achieve superior precision, reliability, and efficiency in modern industrial automation production lines. These valves redefine control and operational excellence in manufacturing. They offer significant advancements, driving industries towards greater productivity and consistent quality.
FAQ
What are HVC6 Series directional valves?
HVC6 Series directional valves offer precise control for industrial automation. They ensure high accuracy and reliability in manufacturing processes. Hanshang Hydraulic designed them for optimal performance.
How does line mounting benefit HVC6 Series directional valves?
Line mounting improves flow dynamics and pressure stability. It creates shorter fluid paths. This enhances system responsiveness and accuracy. It also simplifies installation and maintenance.
What are the key specifications of HVC6 Series directional valves?
HVC6 valves handle a maximum flow of 50 L/min. They operate at a maximum working pressure of 25 Mpa. These robust specifications suit demanding industrial environments.
