Mining operations endure immense challenges where hydraulic system failures can cost companies $130,000 per hour. HVC10 series directional valves line mounting offers a robust solution. This configuration significantly enhances reliability by minimizing leak points and improving structural integrity under extreme operational stresses. It ensures excavators operate continuously and efficiently in demanding environments.
Key Takeaways
- HVC10 line mounting makes hydraulic systems more reliable. It reduces leaks and makes the system stronger.
- This system helps mining excavators work better. It lowers maintenance needs and keeps machines running longer.
- HVC10 line mounting saves money. It cuts down on repairs and lost work time.

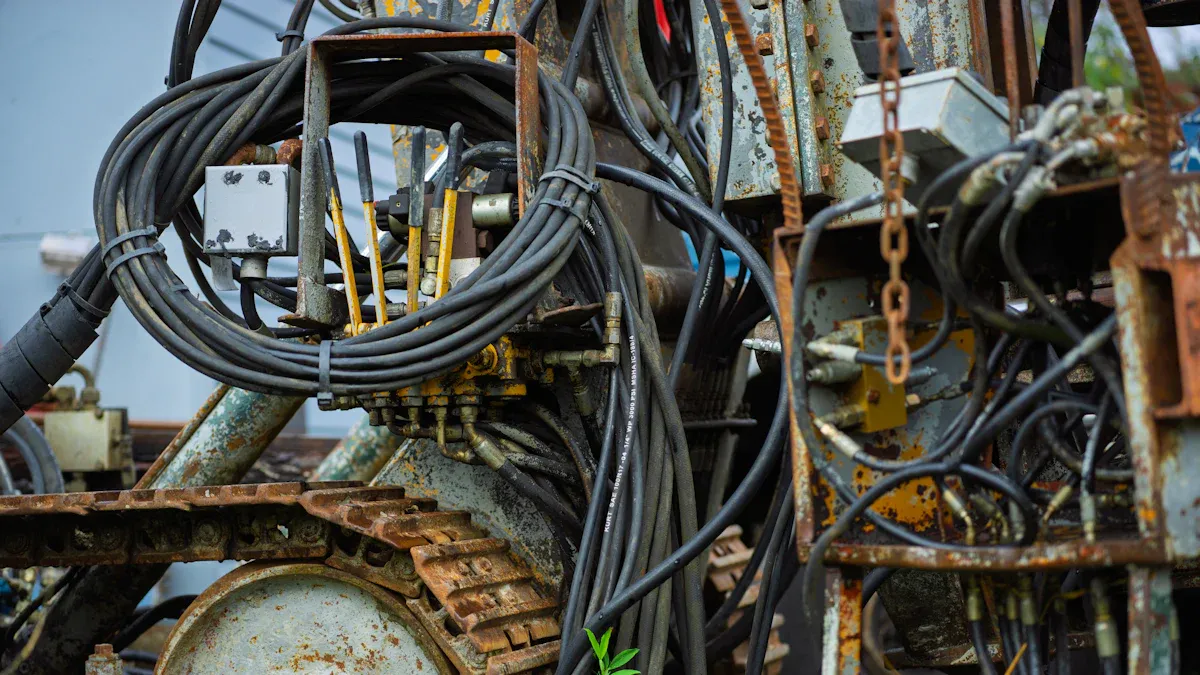

Understanding the Challenges of Mining Excavator Hydraulic Systems
Harsh Operating Environments: Vibration, Dust, and Temperature Extremes
Mining excavators face relentless conditions. They operate in environments with constant vibration, abrasive dust, and extreme temperature fluctuations. These factors severely test hydraulic system integrity. Dust and dirt are the most common external contaminants entering these systems. Water contamination also occurs frequently from rain, washing, and even atmospheric humidity. Temperature cycling, especially extreme variations, accelerates contamination ingress. This happens because pressure differentials draw in contaminated air. Air and water contamination are responsible for 80-90% of hydraulic failures in mining and construction equipment. These harsh conditions demand robust solutions to prevent costly downtime.
Common Failure Points in Conventional Valve Mounting
Conventional valve mounting methods often introduce vulnerabilities. Traditional setups use numerous hoses, fittings, and adapters. Each connection point represents a potential leak path. Vibrations common in mining operations can loosen these connections over time. This leads to fluid leaks and system pressure loss. External impacts can also damage exposed hoses and fittings. Such damage compromises system integrity. These conventional designs struggle to maintain optimal performance under the constant stress of mining operations. They often result in frequent maintenance and unexpected breakdowns.
HVC10 Series Directional Valves: Designed for Durability
Hanshang Hydraulic, established in 1988, leads innovation in the hydraulic field. The company designs and manufactures hydraulic valves and systems with a commitment to excellence. Hanshang Hydraulic aims to build a renowned brand in the hydraulic sector. They achieve this through continuous investment in research, development, and advanced manufacturing.

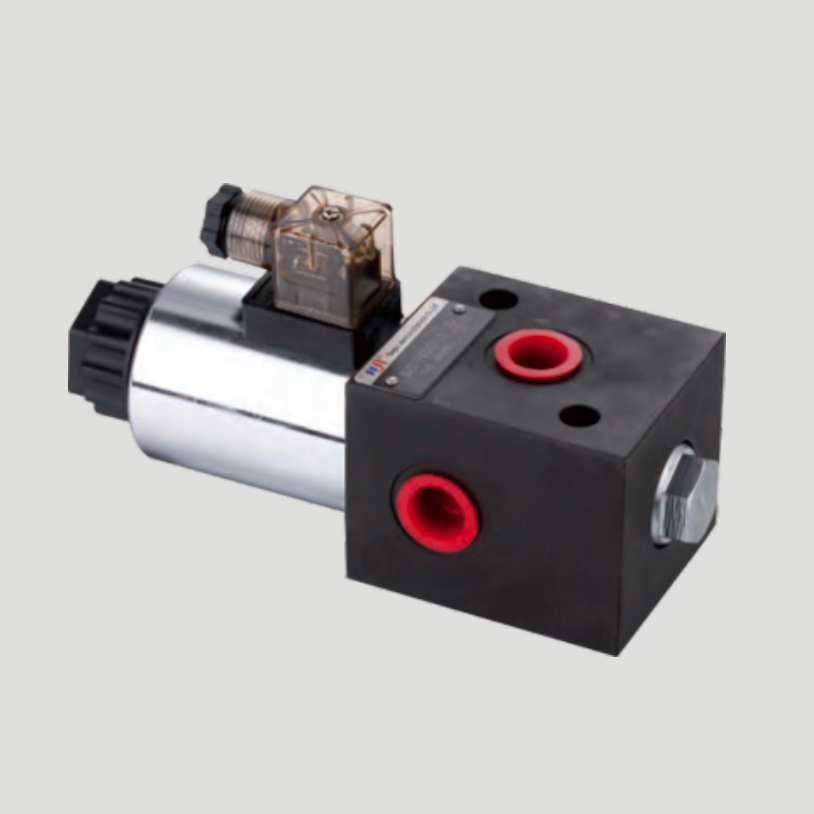

Key Features of HVC10 Valves Relevant to Reliability
Hanshang Hydraulic ensures the HVC10 series valves meet the highest standards for durability. The HVC10 valves handle a flow of 80 L/min and operate at a maximum pressure of 25 MPa. Hanshang Hydraulic utilizes advanced three-dimensional design software like PROE and Solidcam. This ensures high efficiency, reliability, and accuracy in product development. The company’s 12,000 square meter facility houses over a hundred CNC full-function lathes, processing centers, and high-precision grinding machines. For quality assurance, Hanshang Hydraulic developed a hydraulic valve test bench with Zhejiang University. This test bench precisely measures dynamic, static performance, and fatigue life for valves, handling pressures up to 35 MPa and flows up to 300 L/min. Hanshang Hydraulic also holds ISO9001-2015 quality management system certification and CE certification for its full range of hydraulic valves exported to Europe. These certifications guarantee stable and reliable hydraulic products.
The Advantage of HVC10 Series Directional Valves Line Mounting
The HVC10 SERIES DIRECTIONAL VALVES LINE MOUNTING configuration offers significant advantages for reliability. This method integrates the valves directly into the hydraulic lines. It eliminates many traditional connection points. This design choice directly reduces potential leak paths. It also enhances the overall structural integrity of the hydraulic system. The robust design of HVC10 valves, combined with line mounting, creates a highly resilient system. This system withstands the severe vibrations and stresses common in mining environments. This approach simplifies the hydraulic circuit, making it more compact and less prone to external damage.
HVC10 Series Directional Valves Line Mounting: A Solution for Enhanced Reliability
Reduced Leakage Points and Improved Sealing Integrity
HVC10 SERIES DIRECTIONAL VALVES LINE MOUNTING significantly reduces the number of potential leak points within a hydraulic system. Traditional setups rely on numerous hoses, fittings, and adapters. Each connection introduces a vulnerability. Line mounting integrates valves directly into the hydraulic lines. This design minimizes the need for external connections. Fewer connections mean fewer opportunities for fluid to escape. It also enhances the overall sealing integrity of the system. This direct integration creates a more robust and leak-resistant hydraulic circuit. Mining operations benefit immensely from this design. Reduced leakage translates directly into less fluid loss, lower environmental impact, and consistent system pressure. This reliability ensures excavators maintain peak performance without unexpected downtime.
Enhanced Vibration Resistance and Structural Stability
Mining excavators operate in environments with constant, severe vibrations and shocks. These forces can compromise conventional hydraulic systems. HVC10 SERIES DIRECTIONAL VALVES LINE MOUNTING offers superior resistance to these harsh conditions. This mounting method creates a more rigid and integrated structure. It effectively distributes stress across the system. Robust structural designs, often featuring steel elements and buckling designs, are crucial for handling severe shock. These designs allow for significant deflection, which directly contributes to greater shock attenuation. They can carry static loads axially while accommodating dynamic inputs radially. This ensures stability in demanding conditions. The integrated nature of line mounting acts as a stabilizer for tall equipment packages. It enhances overall system stability. This design ensures the hydraulic system remains intact and operational even under the most extreme operational stresses.
Simplified Maintenance and Troubleshooting
The streamlined design of HVC10 Series Directional Valves with line mounting simplifies maintenance procedures. Fewer external components mean less to inspect, replace, or repair. Technicians can more quickly identify and address potential issues. The integrated nature of the system reduces clutter. This provides clearer access to components when service is necessary. This simplification translates into faster maintenance cycles and reduced labor costs. Troubleshooting also becomes more straightforward. A less complex system offers fewer variables to consider when diagnosing problems. This efficiency minimizes downtime. It allows mining excavators to return to operation faster.
Optimized Flow Paths and Pressure Management
HVC10 Series Directional Valves Line Mounting optimizes hydraulic fluid flow. It eliminates many restrictive fittings and long hose runs. This direct integration creates smoother, more efficient flow paths. Reduced restrictions minimize pressure drops throughout the system. This ensures consistent pressure delivery to actuators. Optimized flow paths lead to improved system responsiveness and overall efficiency. Excavator operators experience more precise control and faster cycle times. Effective pressure management also extends the lifespan of hydraulic components. It reduces wear and tear. This contributes to the long-term reliability and performance of the mining excavator.
Practical Considerations for Implementing HVC10 Series Directional Valves Line Mounting
Installation Best Practices and Component Selection
Implementing HVC10 SERIES DIRECTIONAL VALVES LINE MOUNTING requires careful planning. Proper installation ensures maximum reliability and system longevity. Technicians must follow manufacturer guidelines precisely. They should select only high-quality hydraulic hoses and fittings. These components must match the system’s specific pressure and flow requirements. Maintaining absolute cleanliness during assembly prevents contamination. This includes flushing lines and using clean tools. Skilled personnel perform the installation. This guarantees correct alignment and secure connections. They also ensure proper torque specifications for all fasteners. Regular inspections after initial setup confirm system integrity. This proactive approach prevents future issues and optimizes performance. Proper training for maintenance teams on this specific configuration is also crucial.
Long-Term Benefits: Reduced Downtime and Operational Costs
The long-term benefits of this advanced mounting method are substantial. Mining operations experience significantly reduced downtime. Fewer leak points and enhanced structural integrity mean fewer unexpected breakdowns. This directly translates to increased operational hours for excavators. Companies save money on repairs and replacement parts. They also avoid the high costs associated with idle equipment. The improved reliability boosts productivity and profitability. This strategic investment yields considerable returns over the equipment’s lifespan. The HVC10 SERIES DIRECTIONAL VALVES LINE MOUNTING provides a dependable solution. It ensures continuous operation in the most demanding environments. This ultimately lowers overall operational costs and enhances the bottom line. Businesses gain a competitive edge through consistent equipment availability.
HVC10 series directional valves with line mounting offer a superior solution for mining excavators. They provide unparalleled reliability and significantly reduce maintenance needs. This configuration ultimately delivers greater operational efficiency and profitability in demanding environments. Companies gain a competitive edge with this robust hydraulic system.
FAQ
Why should I choose HVC10 line mounting for my excavator?
HVC10 line mounting minimizes leak points and enhances structural integrity. It ensures superior reliability and performance in harsh mining environments.
How does HVC10 line mounting reduce maintenance?
The streamlined design has fewer external components. This simplifies inspections and repairs. It leads to faster maintenance cycles and lower labor costs.
What operational benefits does this system provide?
It optimizes fluid flow and pressure management. This results in precise control, faster cycle times, and significantly reduced downtime for excavators.
