An FC51 Fullrange Pressure Compensating Variable FLOW CONTROL VALVE is a hydraulic component. It maintains a constant, user-adjustable flow rate, irrespective of system pressure or load fluctuations. This technology demonstrates significant market value. Experts project the global market for pressure-compensated valves will reach approximately USD 3.5 billion by 2033, showing a 5.8% compound annual growth rate.
Key Takeaways
- The FC51 valve keeps water flowing at a steady rate. It does this even when pressure changes.
- This valve lets you change how much water flows. It works well for many different jobs.
- The FC51 valve helps machines work better. It makes them more reliable and efficient.
Understanding the FC51 Fullrange Pressure Compensating Variable FLOW CONTROL VALVE
The FC51 FLOW CONTROL VALVE stands out in hydraulic systems. Its name describes its core capabilities. This section breaks down each key term. It explains how these features work together.
Fullrange: Consistent Control Across All Settings
The term “Fullrange” highlights a significant advantage of the FC51. This valve delivers precise flow control across its entire operational spectrum. Users can set the flow rate from its minimum to its maximum capacity. The valve maintains accuracy at every point within this range. This means the FC51 does not lose precision at very low or very high flow settings. It provides reliable performance whether a system requires a trickle or a torrent. This consistent control ensures optimal operation for diverse hydraulic tasks.
Pressure Compensating: Stable Flow Despite Pressure Changes
“Pressure Compensating” is a critical feature for stable hydraulic performance. System pressures often fluctuate. These changes can occur due to varying loads or pump output. Without compensation, flow rates would change, affecting machine performance. The FC51 FLOW CONTROL VALVE actively counteracts these pressure variations. It uses an internal mechanism, often a spring-loaded spool. This spool automatically adjusts its position. It maintains a constant pressure drop across the main metering orifice. This action ensures that the fluid flow rate remains exactly as set by the operator. It does this regardless of upstream or downstream pressure changes. This stability is vital for applications requiring consistent speed or movement.
Tip: Pressure compensation prevents “drift” in hydraulic actuators, ensuring smooth and predictable operation.
Variable: Adjustable Flow at Your Fingertips
The “Variable” aspect of the FC51 provides flexibility. Operators can easily adjust the flow rate. A simple knob or screw allows for precise setting changes. This adjustability means one valve can serve multiple purposes. Users can fine-tune machine speeds or actuator movements. For example, a machine might need a slow, precise movement for one task. It might need a fast, powerful movement for another. The FC51 accommodates both requirements. This adaptability enhances machine versatility and operational efficiency. It gives operators direct control over hydraulic output.

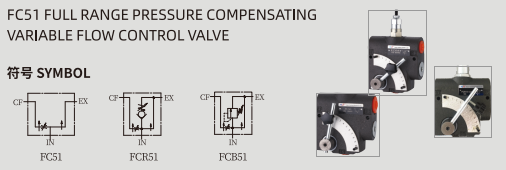

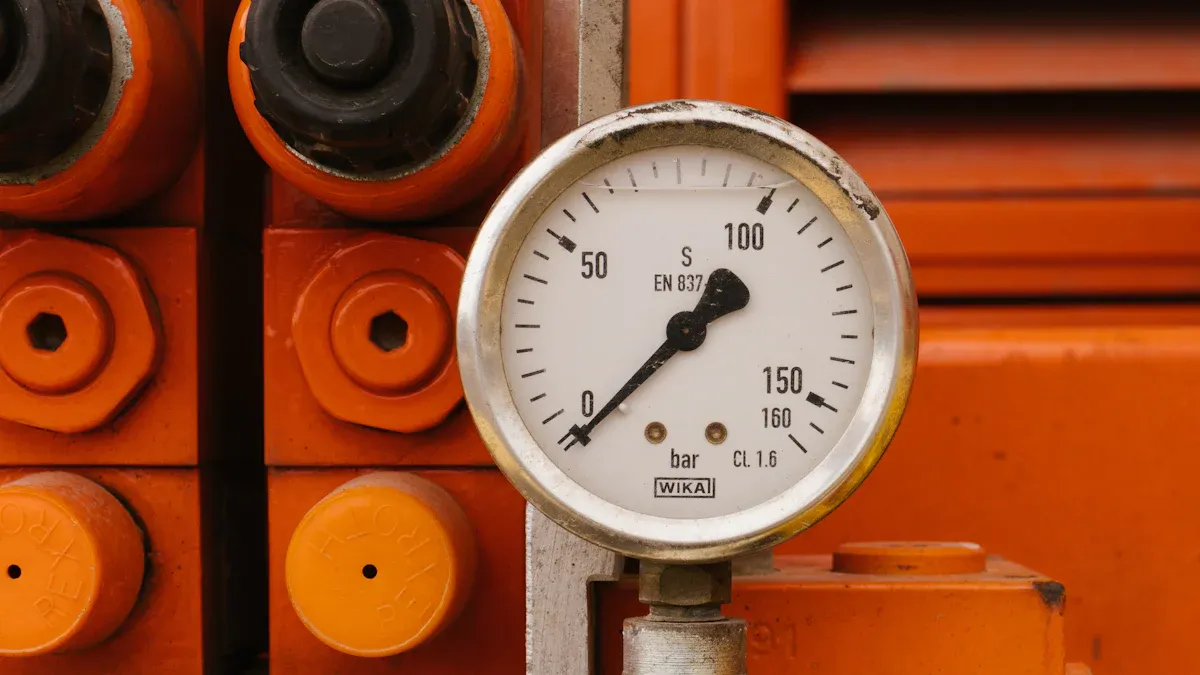

How the FC51 FLOW CONTROL VALVE Works: Mechanics and Benefits
The FC51 FLOW CONTROL VALVE represents a sophisticated piece of hydraulic engineering. Its design allows for precise fluid management within complex systems. Understanding its internal mechanics reveals the ingenuity behind its consistent performance.
Key Components and Internal Operation
An FC51 valve comprises several essential components working in concert. The main body houses the fluid passages, including an inlet and an outlet port. Inside, a crucial element is the metering orifice. This adjustable opening directly controls the initial flow rate. A user typically adjusts this orifice using an external knob or screw. Another vital part is the pressure compensating spool. This spool moves freely within a bore, actuated by pressure differentials and a spring. The spring provides a reference force, balancing against hydraulic pressures.
Fluid enters the valve through the inlet. It then flows towards the metering orifice. As fluid passes through this orifice, a pressure drop occurs. The pressure compensating spool senses the pressure both upstream and downstream of this orifice. It constantly adjusts its position to maintain a consistent pressure difference across the metering orifice. This dynamic adjustment ensures that the volume of fluid passing through remains constant, regardless of changes in the overall system pressure.
The Pressure Compensation Principle in Action
The pressure compensation principle is the core of the FC51′s effectiveness. Imagine a hydraulic system where the load on an actuator suddenly increases. This increase causes the pressure downstream of the valve to rise. Without compensation, this higher downstream pressure would reduce the flow rate through a simple orifice, slowing the actuator.
The FC51 valve prevents this issue. When downstream pressure increases, the pressure compensating spool immediately senses this change. The spool then shifts its position. This shift effectively opens or closes a bypass or a secondary restriction within the valve. The spool’s movement works to maintain a constant pressure drop across the primary metering orifice. By keeping this pressure drop stable, the valve ensures a steady flow rate. This mechanism means the actuator continues to move at its set speed, unaffected by the increased load or pressure fluctuations elsewhere in the system. The valve actively regulates itself, providing unwavering flow.
Why Choose an FC51 FLOW CONTROL VALVE
Choosing an FC51 FLOW CONTROL VALVE offers significant advantages for various hydraulic applications. Its primary benefit lies in its ability to deliver unwavering precision. Operators can set a specific flow rate, and the valve maintains it with high accuracy. This precision is crucial for tasks requiring consistent speed or controlled movement, such as robotic arms or material handling equipment.
The valve also provides enhanced system stability. Fluctuating pressures, common in dynamic hydraulic environments, do not impact the set flow rate. This stability leads to smoother machine operation and reduces wear on components. Furthermore, the FC51′s variable adjustability offers immense flexibility. One valve can handle multiple operational requirements, reducing the need for specialized components. This adaptability simplifies system design and inventory management. Ultimately, the FC51 contributes to improved efficiency and reliability in hydraulic systems, ensuring predictable performance and potentially extending equipment lifespan.
Applications of the FC51 FLOW CONTROL VALVE
The FC51 valve’s precision and stability make it indispensable across many industries. Its ability to maintain a constant flow rate under varying pressures solves critical operational challenges.
Industrial Machinery and Manufacturing
In industrial settings, the FC51 valve ensures consistent performance for automated processes. Manufacturing plants use these valves in hydraulic presses, assembly lines, and robotic systems. They guarantee precise movement and speed, which is vital for product quality and production efficiency. For example, a machine tool requires a steady feed rate for accurate cutting. The FC51 maintains this rate, preventing inconsistencies caused by pressure fluctuations. This reliability minimizes downtime and reduces material waste.
Mobile Hydraulics in Heavy Equipment
Heavy equipment relies heavily on robust hydraulic systems. Construction machinery, agricultural vehicles, and mining equipment all benefit from the FC51. These machines often operate in demanding environments with constantly changing loads and pressures. The FC51 ensures that functions like boom extension, bucket articulation, or steering remain smooth and predictable. This stability enhances operator control and safety. The construction machinery industry increasingly adopts the FC51 FULL RANGE PRESSURE COMPENSATING VARIABLE FLOW CONTROL VALVE. This adoption reduces energy consumption, saves costs, and enhances operational efficiency.
Other Niche Applications for Stable Flow
Beyond large-scale industrial and mobile applications, the FC51 finds use in specialized areas. It is crucial in medical equipment, such as patient lifts or adjustable hospital beds, where smooth, controlled movement is paramount. Entertainment industries use these valves in stage hydraulics for precise set movements or special effects. Even in marine applications, like steering systems or winch controls, the FC51 provides the necessary stability. Its versatility makes it a valuable component wherever stable, adjustable fluid flow is a requirement.
The FC51 Fullrange Pressure Compensating Variable FLOW CONTROL VALVE is vital. It achieves stable, adjustable, and efficient hydraulic system operation. It maintains a constant flow rate despite pressure changes. Understanding its ‘fullrange,’ ‘pressure compensating,’ and ‘variable’ features clarifies its powerful capabilities. It highlights its value in diverse applications.
FAQ
What is the main purpose of an FC51 FLOW CONTROL VALVE?
An FC51 valve maintains a constant, user-adjustable flow rate. This occurs regardless of system pressure or load changes. It ensures stable hydraulic system operation.
How does the “pressure compensating” feature work?
An internal mechanism automatically adjusts. It keeps a constant pressure drop across the metering orifice. This ensures a steady flow rate despite pressure fluctuations.
In which industries does the FC51 valve find common use?
It is crucial in industrial machinery, manufacturing, and mobile hydraulics. It also serves niche applications requiring stable, adjustable fluid flow.
