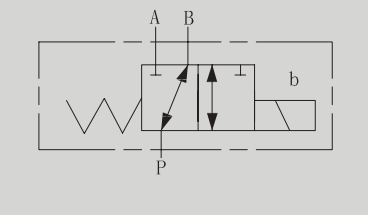

    HVC-3/2-10 DIRECTIONAL VALVES LINE MOUNTING

    Short Description:

    26


    Product Detail

    Product Tags

    Technical data

    Model HVC-3/2-10
    Max Flow rate(L/min) 80
    Max operating pressure(MPa) 21
    Valve body(Material)Surface treatment (casting)phosphating surface
    Oil cleanliness NAS1638 class 9 and ISO4406 class 20/18/15

    Characteristic curves(measured with HLP46,Voil=40℃±5℃)

    3333



    Installation Dimensions

    4444

    5555
