    ZPB/Z2PB SERIES MODULAR RELIEF VALVES

    Short Description:

    5

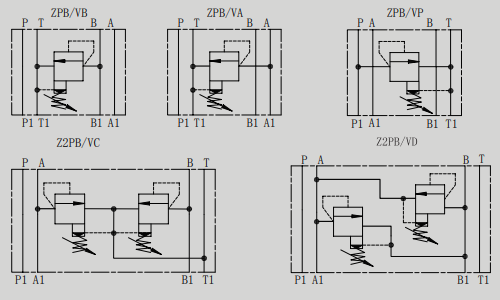

    Pressure relief valves of ZPB/Z2PB series are pilot operated style modular valves.


    Product Detail

    Product Tags

    Pressure relief valves of ZPB/Z2PB series are pilot operated style modular valves.

    Size 6 10
    Operating pressure (MPa) 31.5 31.5
    Flow rate (L/min) 60 100
    Oil temperature range(℃) -20~70  -20~70
    ZPB Weight(KGS) 1.3 2.6
    Z2PB Weight(KGS) 1.9 3.1
    Valve body(Material)Surface treatment casting phosphating surface
    Oil cleanliness NAS1638 class 9 and ISO4406 class 20/18/15

    33333

    ZPB6VA External Dimensions and Fittings

    4444

    ZPB6VP VB External Dimensions and Fittings

    5555

    ZPB10VA External Dimensions and Fittings

    5555

    ZPB10VP VB External Dimensions and Fittings

    7777
