    Z1DS SERIES MODULAR CHECK VALVES

    Short Description:

    2

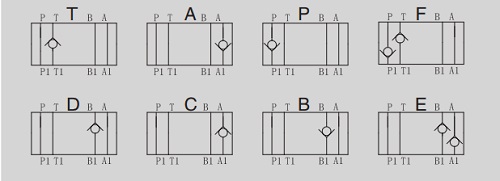

    Z1DS series are direct operated check valves.


    Product Detail

    Product Tags

    Z1DS series are direct operated check valves.

    Size 6 10
    Operating pressure(Mpa) 31.5 31.5
    Flow rate(L/min) 40 100
    Oil temperature range(℃) -20~70 -20~70
    Weight(KGS) 0.9 2.3
    Valve body(Material)Surface treatment casting phosphating surface
    Oil cleanliness NAS1638 class 9 and ISO4406 class 20/18/15

    5

    Z1DS6 External Dimensions and Fittings

    6

    Z1DS10 External Dimensions and Fittings

    7
