    FG Throttle dorsan / FK Throttle Sgrùdadh bhalbh

    Goirid Tuairisgeul:

    44

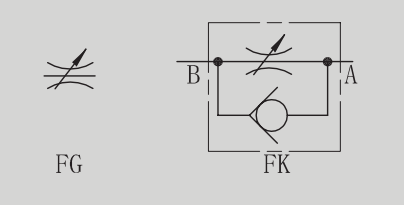

    FG/FK series throttle/throttle check valves mounted on the oil pipe lines di-rectly.FG throttle valve is used to regulate flow by turning adjustment sleeve.FK throttle check valve is used to control flow in one direction and allow free flow in the opposite.


    bathar Detail

    bathar Tags

    FG / FK sreath Throttle / Throttle seic bhalbh mharcaich air an ola pìoba lines di-rectly.FG Throttle bhalbh a chleachdadh gus smachd a chumail air sruthadh le tionndadh adjustment sleeve.FK Throttle seic bhalbh a chleachdadh gus smachd a chumail ann an aon sruth stiùireadh agus a 'leigeil an-asgaidh Flow ann an mu choinneamh.

    Technical dàta

    meud 6 8 10 15 20 25 30
    Obrach Brùthadh (MPA) 31,5 31,5 31,5 31,5 31,5 31,5 31,5
    Flow Rate (L / min) 15 30 50 125 200 300 400
    Inch G1 / 4 " G3 / 8 " G1 / 2 " G3 / 4 " G1 " G1 1/4 " G1 1/2 "
    meatrach M14 x 1.5 M18 x 1.5 M22 x 1.5 M27 x 2 M33 x 2 M42 x 2 M48 x 2
    Cnagadh sreath de seic bhalbh 0.05MPa
    FK Weight (KGS) 0.3 0.4 0.7 1.3 2.3 3.8 4.8
    FG Weight (KGS)

    FG / FK Drawing

    333

    444
